SURETEMP™ DUAL CONVECTION INCUBATORS

Specifications

Temperature Range	Ambient +5° to 75°C
Temperature Accuracy	±0.25°C
Temperature Uniformity	±0.25°C
Temperature Increments	0.1°C
Temperature Stability	0.1°C
Timer	1 min. to 99 hours 59 min. or continuous
Chamber	Stainless Steel (316)
Electrical	120V or 230V 50-60Hz
Power Consumption	40L: 420W / 70L: 520W / 130L: 670W
H2505-40
Interior Dimensions	13.7 x 13.7 x 13.7 in. / 35 x 35 x 35 cm
Exterior Dimensions	22.4 x 23.3 x 22.8 in. / 57 x 59.2 x 58 cm
Weight	42 kg / 95 lbs
H2505-70
Interior Dimensions	17.7 x 13.7 x 17.7 in. / 45 x 35 x 45 cm
Exterior Dimensions	26.4 x 23.3 x 26.8 in. / 67 x 59.2 x 68 cm
Weight	62 kg / 136.5 lbs
H2505-130
Interior Dimensions	21.7 x 17.7 x 21.7 in. / 55 x 45 x 55 cm
Exterior Dimensions	30.3 x 27.2 x 30.7 in. / 77 x 69.2 x 78 cm
Weight	70kg / 154.4 lbs

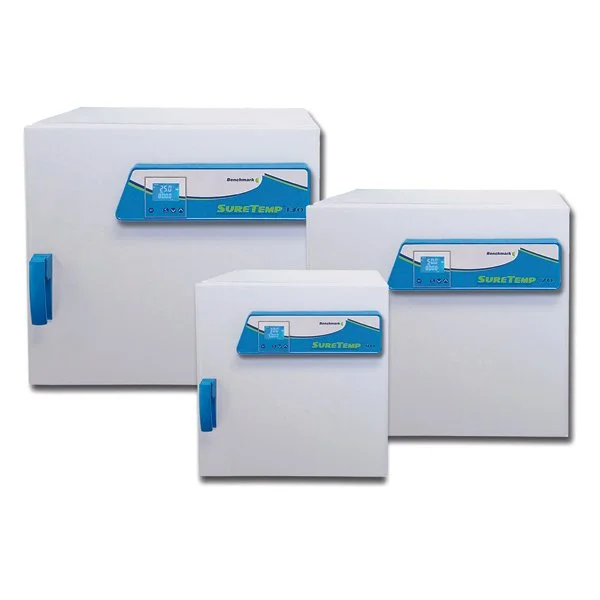

The new SureTemp™ Incubator series provides the highest level of temperature control with uniformity and stability levels that are unmatched by competitive models in the same class.

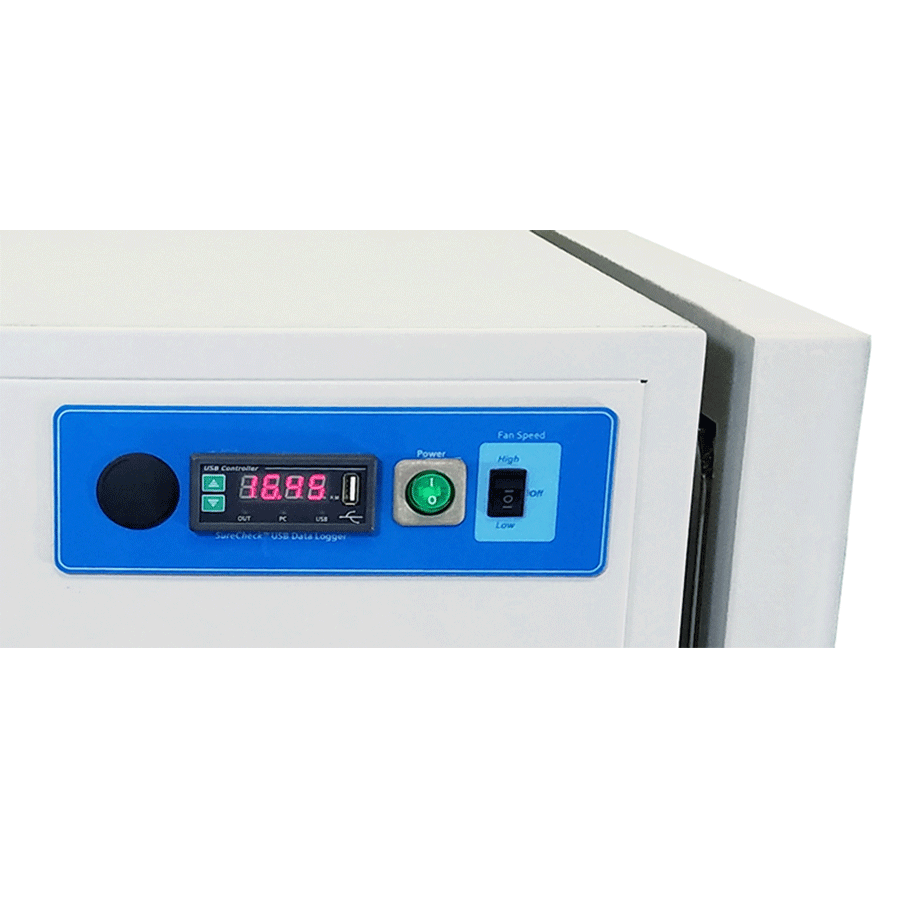

Each incubator is equipped with the SureCheck™ data logging system for verification of chamber temperature. The SureCheck system records temperature data points as often as every 60 seconds and stores this information on a flash drive. The data can then be viewed on any computer capable of reading a .csv file from the flash drive. The recorded data can also be used to plot temperature points on a graph and for analysis of temperature fluctuation over time.

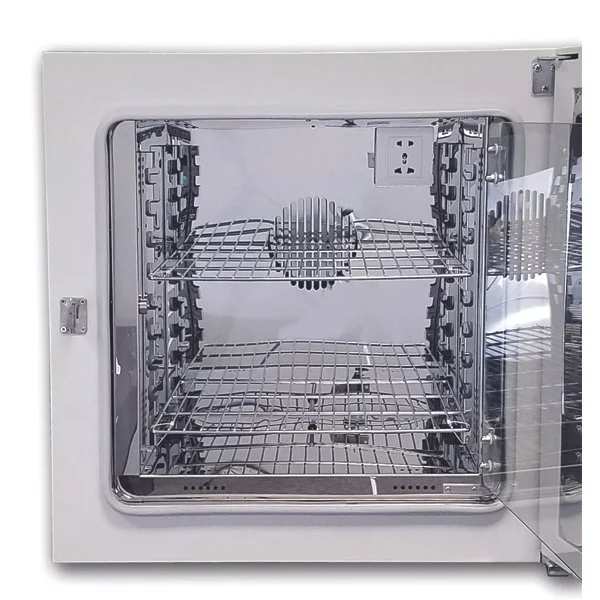

Unlike other laboratory incubators, the SureTemp series offers “Dual-Convection” technology, allowing users to choose between mechanical convection mode* (for exceptional temperature uniformity) or gravity convection mode* (for longer incubations where airborn contamination or drying of samples may be an issue). The heating elements are strategically located on multiple sides of the chamber and contents can be viewed with the separate inner glass door without disrupting the temperature environment.

* Mechanical Convection: Incorporates optimally positioned heating elements in conjunction with an internal chamber fan to control the internal temperatue.
Gravity Convection: Eliminates any airflow from the chamber, relying solely on the heating elements and gravity to control the internal temperature.

Ordering Information:

Cat. H2505-40 Cap. 40 L

Cat. H2505-70 Cap. 70 L

Cat. H2505-130 Cap. 130L
